Concealed Cisterns
Thirty-three models across four groups: pneumatic, mechanical, the D series for floor-mounted pans, and support frames. One-piece blow moulded HDPE tanks rated for a 50-year service life, EPS insulated, dual flush 3/8 L, flow rate 2.2–2.4 L/s, noise below 55 dB. Functional parts rated to 200,000 flushes. Frames adjust 0–200 mm in height and carry a 400 kg load.
Filter by installation constraint
Actuation position (front press / top press) and inlet position (side / top) are selected at order time, not fixed per model. Tell us your wall condition and we will confirm what is available for the model you choose.
Showing 5 of 33 models
Notes
- -G18, G18-1, G19, G20, G28: cistern thickness selectable at order time.
- -G21: supplied with white or grey EPS foam.
- -G100: low-height model for installations under 1 m, available in front-press and top-press versions.
- -D100: flush volume 4/8 L. All other D series models: 3/8 L.
| Model | Image | Type | Pan compatibility | Dimensions (W x D x H) | |
|---|---|---|---|---|---|
| G03 | — | Support Frames | Wall-hung | 500 x 1112 mm (depth on request) | Brand this product |

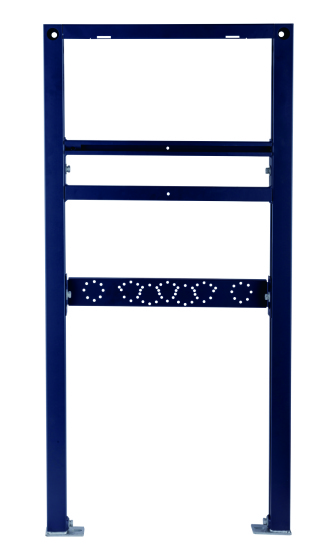

| G04 |  | Support frame — pot rack | Not applicable (frame only) | — | Brand this product |

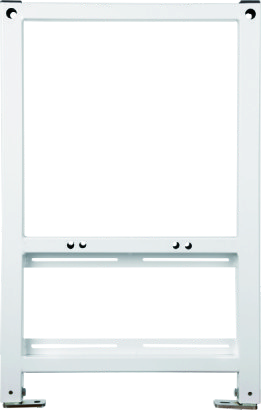

| G05 |  | Support frame — bidet | Not applicable (frame only) | — | Brand this product |

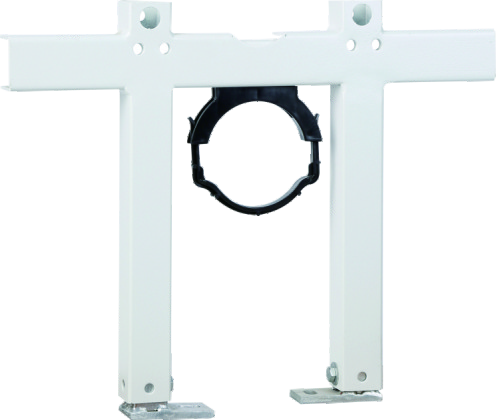

| G06 |  | Support frame — basin rack | Not applicable (frame only) | — | Brand this product |
| G78 | — | Support Frames | Wall-hung | 445 x 340 mm (depth on request) | Brand this product |
